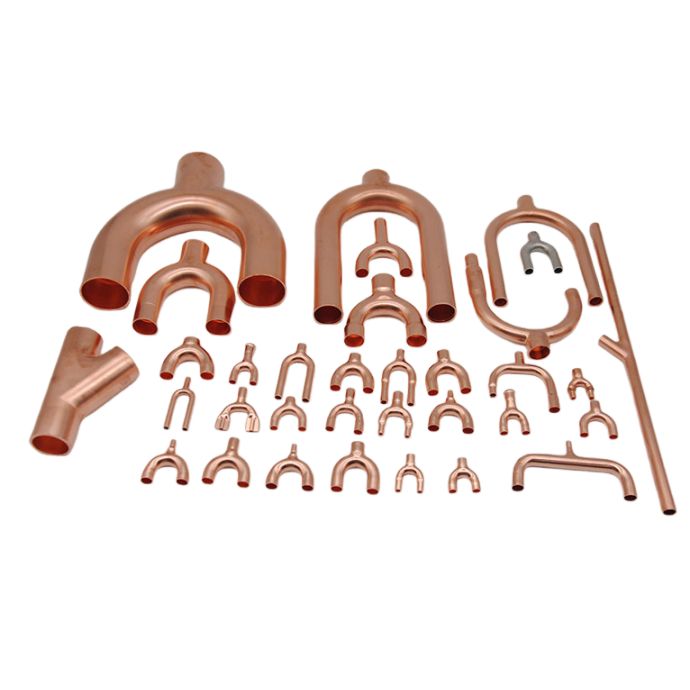

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Y Type Copper Fitting Welding Joint. Using the most advanced technology, strictly follow the ROHS and REACH environmental protection standards. This product has high density, is very strong, and can withstand great pressure. The product design is scientific and reasonable, the size is standard, and the installation is time-saving and labor-saving.
You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Y Type Copper Fitting Welding Joint. Copper Y Joints are essential components in refrigeration and heating systems, renowned for their exceptional thermal conductivity and corrosion resistance. These fittings, designed for copper pipe connections, are crucial in ensuring the longevity and cost-effectiveness of water heaters and other products.
Adhering to strict copper standards, the manufacturing process of Y Type Copper Fitting Welding Joint prioritizes smoothness, absence of burrs, and precise incision angles. These meticulous specifications guarantee a clean and impurity-free tube surface, free from defects like cracks, corrosion, or distortion.
Y Type Copper Fitting Welding Joints are versatile components commonly employed in air conditioning, refrigeration, and other systems that utilize copper pipes. Their exceptional material properties make them invaluable in the heat exchangers of air conditioning units.
Beyond their applications in refrigeration and heating, Y Type Copper Fitting Welding Joints are also widely adopted in the solar energy industry, plumbing hardware, and HVAC (Heating, Ventilation, and Air Conditioning) systems. This versatility stems from their health-promoting material characteristics, making them a reliable choice in various fields.
|
Tube diameter |
A |
B |
C |
E |
F |
D(Φ) |
L |
T |
|
|
GX-Y-01 |
5 |
15 |
5 |
15.5 |
6 |
6 |
5.1 |
29.0 |
0.41 |
|
GX-Y-02 |
6 |
18 |
6 |
17.0 |
6 |
6 |
6.1 |
31.0 |
0.41 |
|
GX-Y-03 |
6.35 |
19.05 |
6.35 |
17.5 |
6 |
6 |
6.5 |
31.7 |
0.41 |
|
GX-Y-04 |
7 |
21 |
7 |
18.5 |
6 |
6 |
7.1 |
33.0 |
0.5 |
|
GX-Y-05 |
7.94 |
23.82 |
7.94 |
19.9 |
6 |
6 |
8.0 |
34.9 |
0.5 |
|
GX-Y-06 |
9.52 |
25.4 |
9.52 |
22.7 |
8 |
8 |
9.6 |
40.5 |
0.55 |
|
GX-Y-07 |
12.70 |
38.1 |
12.7 |
31.1 |
10 |
10 |
12.8 |
52.4 |
0.7 |
|
GX-Y-08 |
15.88 |
47.64 |
15.88 |
37.8 |
12 |
12 |
16.0 |
62.8 |
0.8 |
|
GX-Y-09 |
19.05 |
60 |
19.05 |
46.0 |
14 |
14 |
19.2 |
74.5 |
0.8 |
|
GX-Y-10 |
22.23 |
66.69 |
22.23 |
51.3 |
16 |
16 |
22.3 |
83.5 |
1.0 |
|
GX-Y-11 |
25.40 |
76.2 |
25.4 |
58.1 |
18 |
18 |
25.5 |
93.8 |
1.0 |
|
GX-Y-12 |
28.58 |
85.74 |
28.58 |
64.9 |
20 |
20 |
28.7 |
104.2 |
1.0 |
|
GX-Y-13 |
31.75 |
95.25 |
31.90 |
73.6 |
22 |
22 |
31.9 |
116.5 |
1.2 |
|
GX-Y-14 |
34.93 |
104.79 |
35.08 |
80.4 |
24 |
24 |
35.0 |
126.9 |
1.3 |
|
GX-Y-15 |
38.10 |
114.3 |
38.25 |
87.2 |
26 |
26 |
38.2 |
137.2 |
1.4 |
|
GX-Y-16 |
41.28 |
123.84 |
41.43 |
93.9 |
28 |
28 |
41.4 |
147.6 |
1.5 |
|
GX-Y-17 |
44.45 |
133.35 |
44.60 |
100.7 |
30 |
30 |
44.6 |
157.9 |
1.5 |
|
GX-Y-18 |
50.80 |
152.4 |
50.95 |
112.2 |
32 |
32 |
50.9 |
174.6 |
1.8 |
|
GX-Y-19 |
53.98 |
161.94 |
54.13 |
119.0 |
34 |
34 |
54.1 |
185.0 |
1.8 |
