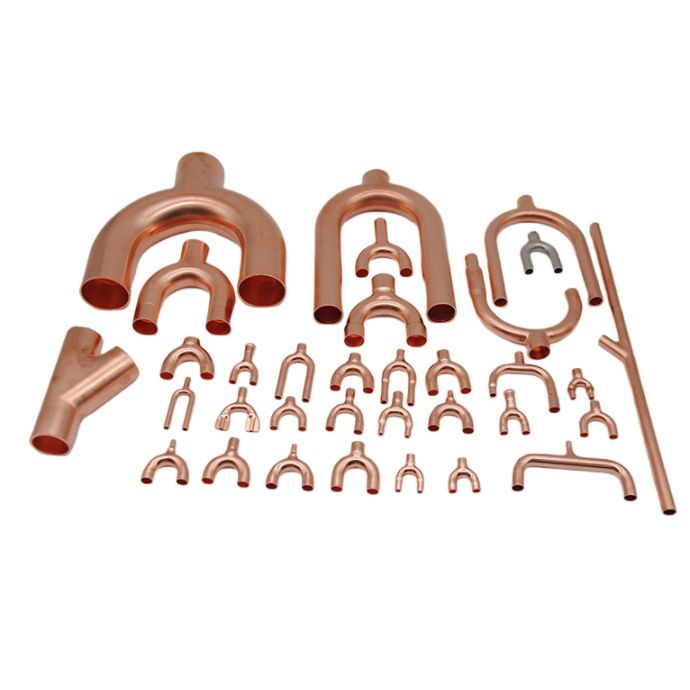

You can rest assured to buy the Gangxin Copper Y Joint produced by our factory. This product is made with the latest environmental protection technology, high product density, strong pressure resistance, in line with ROHS and REACH environmental protection testing, beautiful appearance, convenient installation size, advanced technology;
Copper Y Joint is a kind of copper pipe fittings widely used in refrigeration, heating products, its excellent thermal conductivity and corrosion resistance make it the preferred material for water heater and other products, to ensure the service life and cost performance of the product. This fitting is welded to copper pipe connection, is an indispensable component in the connection of cooling pipe and water heating pipe. copper standard strictly, to design and manufacture of Copper Y Joint tube smooth, no burr , tilt and roundness of incision has clear requirements, to ensure that the tube is clean, without impurities such as copper scrap, dust oil , , tube surface is clean, no crack, no corrosion and no obvious defects such as distortion.
Copper Y Joint is usually used in air conditioning, refrigeration and other copper pipe distribution accessories, its material superiority makes it play an important role in the heat exchanger of air conditioning. In addition, due to its healthy material characteristics, Copper Y Joint is also widely used in the solar energy industry, plumbing hardware and air conditioning HVAC and other fields.
|
Tube diameter |
A |
B |
C |
E |
F |
D(Φ) |
L |
T |
|
|
GX-Y-01 |
5 |
15 |
5 |
15.5 |
6 |
6 |
5.1 |
29.0 |
0.41 |
|
GX-Y-02 |
6 |
18 |
6 |
17.0 |
6 |
6 |
6.1 |
31.0 |
0.41 |
|
GX-Y-03 |
6.35 |
19.05 |
6.35 |
17.5 |
6 |
6 |
6.5 |
31.7 |
0.41 |
|
GX-Y-04 |
7 |
21 |
7 |
18.5 |
6 |
6 |
7.1 |
33.0 |
0.5 |
|
GX-Y-05 |
7.94 |
23.82 |
7.94 |
19.9 |
6 |
6 |
8.0 |
34.9 |
0.5 |
|
GX-Y-06 |
9.52 |
25.4 |
9.52 |
22.7 |
8 |
8 |
9.6 |
40.5 |
0.55 |
|
GX-Y-07 |
12.70 |
38.1 |
12.7 |
31.1 |
10 |
10 |
12.8 |
52.4 |
0.7 |
|
GX-Y-08 |
15.88 |
47.64 |
15.88 |
37.8 |
12 |
12 |
16.0 |
62.8 |
0.8 |
|
GX-Y-09 |
19.05 |
60 |
19.05 |
46.0 |
14 |
14 |
19.2 |
74.5 |
0.8 |
|
GX-Y-10 |
22.23 |
66.69 |
22.23 |
51.3 |
16 |
16 |
22.3 |
83.5 |
1.0 |
|
GX-Y-11 |
25.40 |
76.2 |
25.4 |
58.1 |
18 |
18 |
25.5 |
93.8 |
1.0 |
|
GX-Y-12 |
28.58 |
85.74 |
28.58 |
64.9 |
20 |
20 |
28.7 |
104.2 |
1.0 |
|
GX-Y-13 |
31.75 |
95.25 |
31.90 |
73.6 |
22 |
22 |
31.9 |
116.5 |
1.2 |
|
GX-Y-14 |
34.93 |
104.79 |
35.08 |
80.4 |
24 |
24 |
35.0 |
126.9 |
1.3 |
|
GX-Y-15 |
38.10 |
114.3 |
38.25 |
87.2 |
26 |
26 |
38.2 |
137.2 |
1.4 |
|
GX-Y-16 |
41.28 |
123.84 |
41.43 |
93.9 |
28 |
28 |
41.4 |
147.6 |
1.5 |
|
GX-Y-17 |
44.45 |
133.35 |
44.60 |
100.7 |
30 |
30 |
44.6 |
157.9 |
1.5 |
|
GX-Y-18 |
50.80 |
152.4 |
50.95 |
112.2 |
32 |
32 |
50.9 |
174.6 |
1.8 |
|
GX-Y-19 |
53.98 |
161.94 |
54.13 |
119.0 |
34 |
34 |
54.1 |
185.0 |
1.8 |
