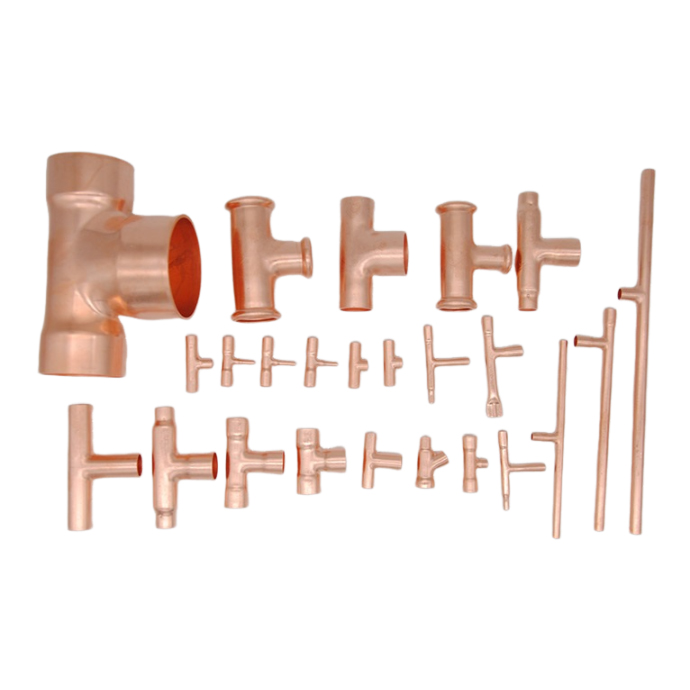

You can rest assured to buy customized Tee Copper Fitting 3 Way Welding Joint from us. In order to bring customers a better experience, we strive for excellence in product design. This product strictly complies with ROHS and REACH environmental standards. It is environmentally friendly, durable, beautiful and easy to install. This product will be your best choice.
You can rest assured to buy customized Tee Copper Fitting 3 Way Welding Joint from us. Copper compression tee pipe fittings have been widely used in refrigeration, heating and other fields due to their excellent performance. This kind of pipe fittings are usually made of high-quality TP2 copper tubes. Their excellent thermal conductivity and corrosion resistance make them play a vital role in products such as air conditioning heat exchangers and water heaters.
The excellent thermal conductivity of copper enables heat to be transferred quickly, thereby improving the efficiency of refrigeration or heating equipment. In air-conditioning systems, Tee Copper Fitting 3 Way Welding Joint help accelerate the heat exchange of refrigerants and achieve rapid cooling or heating.
The corrosion resistance of Tee Copper Fitting 3 Way Welding Joint to maintain good performance in various harsh environments and extend the service life of the equipment. Especially in water quality-related equipment such as water heaters, the corrosion resistance of copper pipes can effectively prevent the formation of scale and ensure the normal operation of the equipment.
Copper is a natural antibacterial material with antibacterial and bactericidal properties. Therefore, copper compression tee pipe fittings have been widely used in water appliances such as water dispensers, which can effectively inhibit the growth of bacteria and ensure the safety of drinking water.
The specifications and models of the Tee Copper Fitting 3 Way Welding Joint are various, , such as φ28.622 and φ6.350.8, these specifications of pipe fittings are connected with the copper pipe by welding, is an indispensable component in the connection of refrigeration pipe and water heating pipe. The product features of copper T-tee include that the thickness of copper pipe used depends on the diameter. The larger the diameter , the thicker the wall thickness of copper pipe, to ensure product quality. , for example, in general, it is enough to use 1mm thick copper pipe for a diameter below φ22.3, and 1.5mm thick copper pipe for a diameter of φ35 and above. This design guarantees the quality and durability of the fittings. In addition, Copper Compression T Fitting has also passed ROHS,REACH certification, strict production technology, including environmental cleaning technology, does not damage the copper, pipe wall is clean, the inner wall has no black spots, no impurities.
|
D |
A(Φ) |
B(Φ) |
C(Φ) |
E |
F |
G |
X |
Y |
Z |
L |
H |
T |
|
|
GX-T-01 |
4.76 |
4.86 |
4.86 |
4.86 |
6 |
6 |
6 |
6.4 |
6.4 |
8.4 |
24.8 |
14.4 |
0.41 |
|
GX-T-02 |
5 |
5.1 |
5.1 |
5.1 |
6 |
6 |
6 |
6.5 |
6.5 |
8.5 |
25.0 |
14.5 |
0.41 |
|
GX-T-03 |
6 |
6.1 |
6.1 |
6.1 |
6 |
6 |
6 |
7.0 |
7.0 |
9.0 |
26.0 |
15.0 |
0.41 |
|
GX-T-04 |
6.35 |
6.45 |
6.45 |
6.45 |
6 |
6 |
6 |
7.2 |
7.2 |
9.2 |
26.4 |
15.2 |
0.41 |
|
GX-T-05 |
7 |
7.1 |
7.1 |
7.1 |
7 |
7 |
7 |
7.5 |
7.5 |
9.5 |
29.0 |
16.5 |
0.5 |
|
GX-T-06 |
7.94 |
8.04 |
8.04 |
8.04 |
8 |
8 |
8 |
8.0 |
8.0 |
10.0 |
31.9 |
18.0 |
0.5 |
|
GX-T-07 |
9.52 |
9.62 |
9.62 |
9.62 |
9 |
9 |
9 |
8.8 |
8.8 |
10.8 |
35.5 |
19.8 |
0.55 |
|
GX-T-08 |
12.70 |
12.8 |
12.8 |
12.8 |
10 |
10 |
10 |
10.4 |
10.4 |
12.4 |
40.7 |
22.4 |
0.7 |
|
GX-T-09 |
15.88 |
15.98 |
15.98 |
15.98 |
11 |
11 |
11 |
11.9 |
11.9 |
13.9 |
45.9 |
24.9 |
0.8 |
|
GX-T-10 |
19.05 |
19.15 |
19.15 |
19.15 |
12 |
12 |
12 |
13.5 |
13.5 |
15.5 |
51.1 |
27.5 |
0.8 |
|
GX-T-11 |
22.23 |
22.33 |
22.33 |
22.33 |
13 |
13 |
13 |
15.1 |
15.1 |
17.1 |
56.2 |
30.1 |
1.0 |
|
GX-T-12 |
25.40 |
25.5 |
25.5 |
25.5 |
14 |
14 |
14 |
16.7 |
16.7 |
18.7 |
61.4 |
32.7 |
1.0 |
|
GX-T-13 |
28.58 |
28.68 |
28.68 |
28.68 |
15 |
15 |
15 |
18.3 |
18.3 |
20.3 |
66.6 |
35.3 |
1.0 |
|
GX-T-14 |
31.75 |
31.85 |
31.85 |
31.85 |
18 |
18 |
18 |
19.9 |
19.9 |
21.9 |
75.8 |
39.9 |
1.2 |
|
GX-T-15 |
34.93 |
35.03 |
35.03 |
35.03 |
20 |
20 |
20 |
21.5 |
21.5 |
23.5 |
82.9 |
43.5 |
1.3 |
|
GX-T-16 |
38.10 |
38.2 |
38.2 |
38.2 |
22 |
22 |
22 |
23.1 |
23.1 |
25.1 |
90.1 |
47.1 |
1.4 |
|
GX-T-17 |
41.28 |
41.38 |
41.38 |
41.38 |
24 |
24 |
24 |
24.6 |
24.6 |
26.6 |
97.3 |
50.6 |
1.5 |
|
GX-T-18 |
44.45 |
44.55 |
44.55 |
44.55 |
26 |
26 |
26 |
26.2 |
26.2 |
28.2 |
104.5 |
54.2 |
1.5 |
|
GX-T-19 |
50.80 |
50.9 |
50.9 |
50.9 |
28 |
28 |
28 |
29.4 |
29.4 |
31.4 |
114.8 |
59.4 |
1.8 |
|
GX-T-20 |
53.98 |
54.08 |
54.08 |
54.08 |
30 |
30 |
30 |
31.0 |
31.0 |
33.0 |
122.0 |
63.0 |
1.8 |
|
GX-T-21 |
63.50 |
63.6 |
63.6 |
63.6 |
32 |
32 |
32 |
35.8 |
35.8 |
37.8 |
135.5 |
69.8 |
2.0 |
|
GX-T-22 |
66.70 |
66.8 |
66.8 |
66.8 |
34 |
34 |
34 |
37.4 |
37.4 |
39.4 |
142.7 |
73.4 |
2.0 |
|
GX-T-23 |
79.40 |
79.5 |
79.5 |
79.5 |
36 |
36 |
36 |
43.7 |
43.7 |
45.7 |
159.4 |
81.7 |
2.0 |
|
GX-T-24 |
105.00 |
105.1 |
105.1 |
105.1 |
38 |
38 |
38 |
56.5 |
56.5 |
58.5 |
189.0 |
96.5 |
2.5 |
