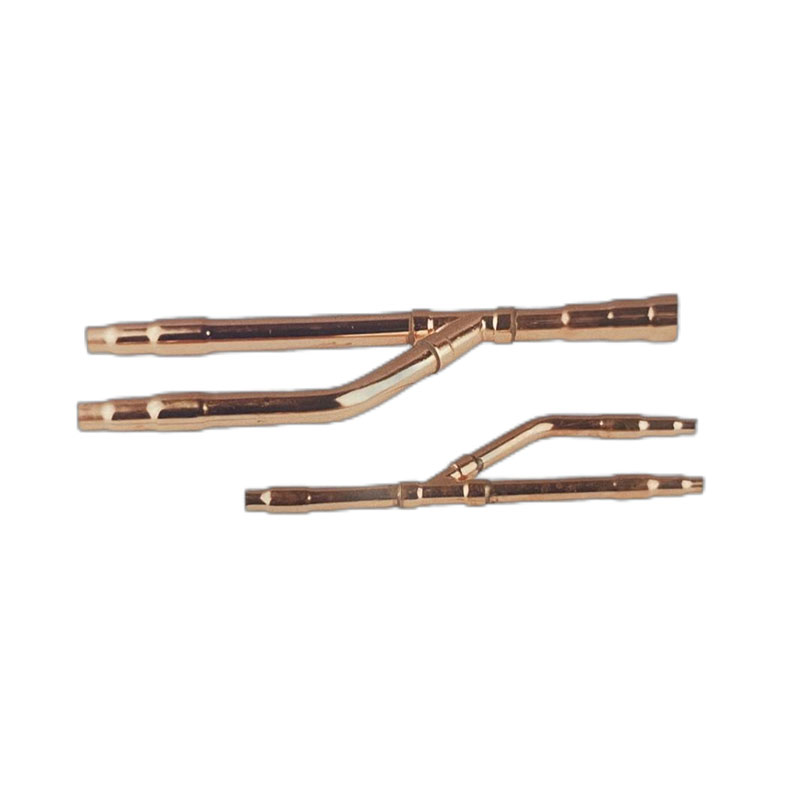

Air Conditioner Branch Pipe

The Air Conditioner Branch Pipe is an important component connecting the indoor unit and outdoor unit pipelines. The main material is copper pipe, which plays the role of diverting refrigerant.

Bifurcation pipe, also known as branch, splitter, divided into steam pipe and liquid pipe, used in the central air conditioning VRV (multi-line) pipeline installation, is an important part of connecting indoor and outdoor unit pipeline, the main material is copper pipe, plays the role of refrigerant separation. The selection of the split tube is determined according to the capacity of the indoor unit connected to each split tube. Air conditioning pipe can be installed horizontally or vertically, when installed horizontally, the Angle between the pipe mouth and the horizontal line must be less than 15 degrees; Vertical installation, facing two pipe mouth, any pipe mouth and vertical line Angle must be less than 15 degrees; The Air Conditioner Branch Pipe after the two pipe ports must ensure that the straight pipe section of more than 60 cm; Small branch manifolds cannot replace large branch manifolds‌ ‌

The structure of the Air Conditioner Branch Pipe is usually made of high-quality copper pipe processing, it can be based on the capacity of the indoor unit connected to each diverging pipe to determine its size. The refrigerant can be separated into other split tubes and end evaporators by diverting through the liquid pipe. The refrigerant becomes a gas after absorbing heat in the evaporator, and then flows back to the compressor of the main engine through the gas pipe. The air conditioning split pipe is like the bifurcation head of the water pipe, which is used to divide the refrigerant, and the multi-line split pipe is used to series several tuyere accessories‌
